Machine profile

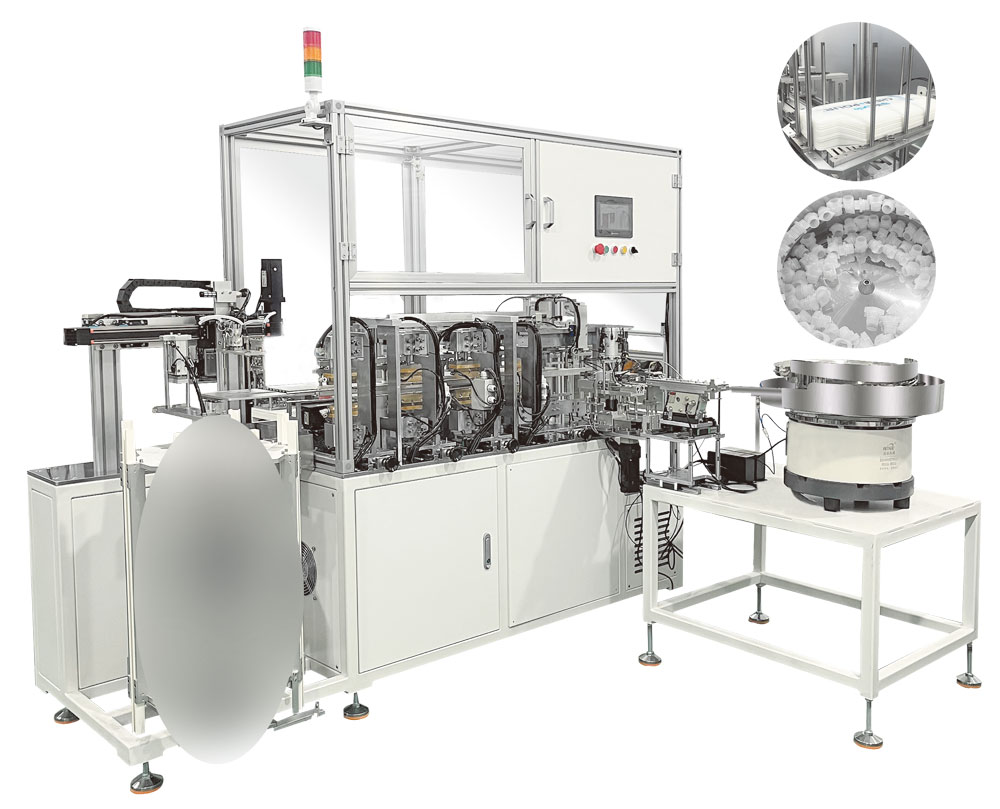

This machine is for automatically sealing and inserting spout pouches, and can be optionallyequipped with a finished product Automatically arrange and fit into plastic slots.

This machine uses reciprocating clamping and bag feeding, which involves sequentially bagopening, hot sealing, and cold sealing to seal the spout and bag together. The machine takes upsmall space and is easy to adiust.

Main property indication

Power：AC 220V，50HZ，Capacity：5.0KW；

Compressed air： 0.5-0.6Mpa，200NL/min；

Size： L×W×H：2400×1800×1800（mm）；

Number of workstation：7 pieces；

Station spacing：250mm；

Weight： ≈1000Kg；

Quick-wear part：Vacuum suction cup；

Pouch size：W*L=（70～160）×（100-260）mm ；spout on the top

                        W*L=(100~160)x(140-260)mm;spout on the corner

Spout size：Customizable，Diameter≤22mm，Length＜40mm

Efficiency：2100-2200 Pcs/hour。

Product display
