Machine profile

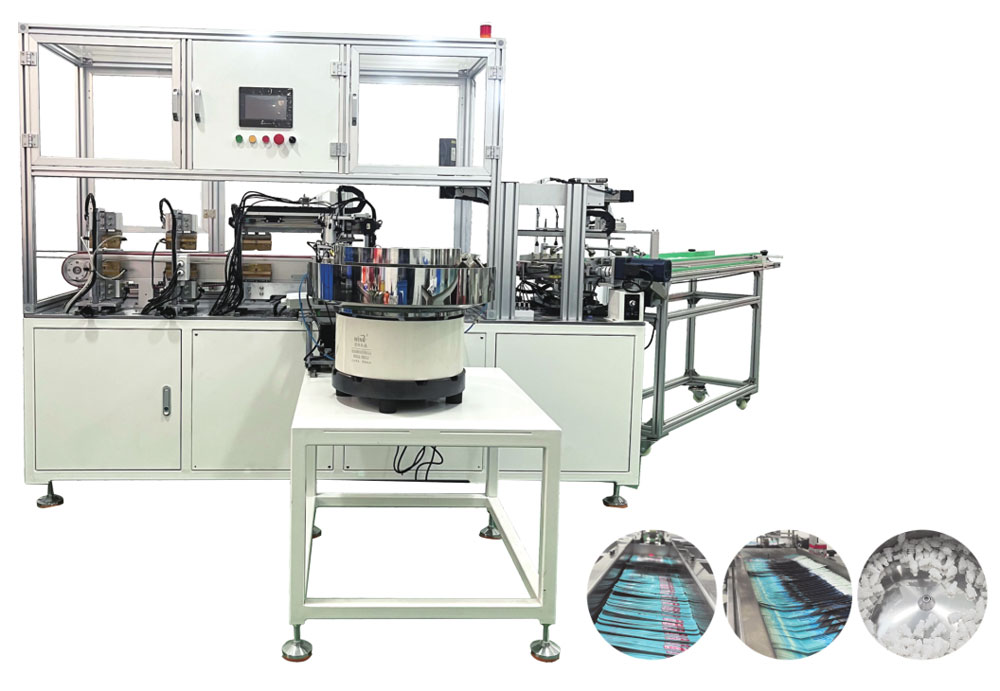

This machine is for flexible packaging bags inserting and sealing spout.

This machine adopts a long conveyor belt for bag placement. After bag picking, bag sorting, and servo module for bag placement, the bag is moved to the horizontal bag transfer line. The horizontal bag transfer line moves the bag to the workstation and sequentially performs spout inserting, initial sealing, heat sealing, and cold sealing to sealing the spout and the bag together. (Ensure that the bag opening is of appropriate size during bag making in advance)

Main property indication

Power： AC 380V ，50HZ，Capacity：8.5KW；

Compressed air： 0.5-0.6Mpa，300NL/min；

Size： L×W×H：4000×4000×1700（mm）；

Number of workstation：6    Station spacing：300mm；

Weight： ≈1000Kg；

Pouch size：W*L=（150～250）×（180-310）mm ；corner ofthe pouch

                    W*L=（120～250）×（150-310）mm； top of the pouch;

Spout size：Customizable，Diameter≤22mm，Length＜40mm

Efficiency：2100-2300 Pcs/hour。

Product display
