Machine profile

This machine is a device for sealing degassing valves on Flexible packaging bags such as coffee bags, tea bags, and pet food bags. This function automatically completes the entire process of valve feeding, sealing, and punching.

Main property indication

Power： AC 220V ，50HZ，Capacity：0.5KW；

Compressed air： 0.5-0.6Mpa，100NL/min；

Size： L×W×H：1000×800×1400（mm）；

Weight： ≈100Kg；

Pouch size：Minimum bag width55mm ；

Maximum dimension from the top of pouch to Valve center：150mm(Measure from the bag opening)

Punching style：Customizable；

Efficiency：800-900 per day

(Depending on the proficiency level of workers)；

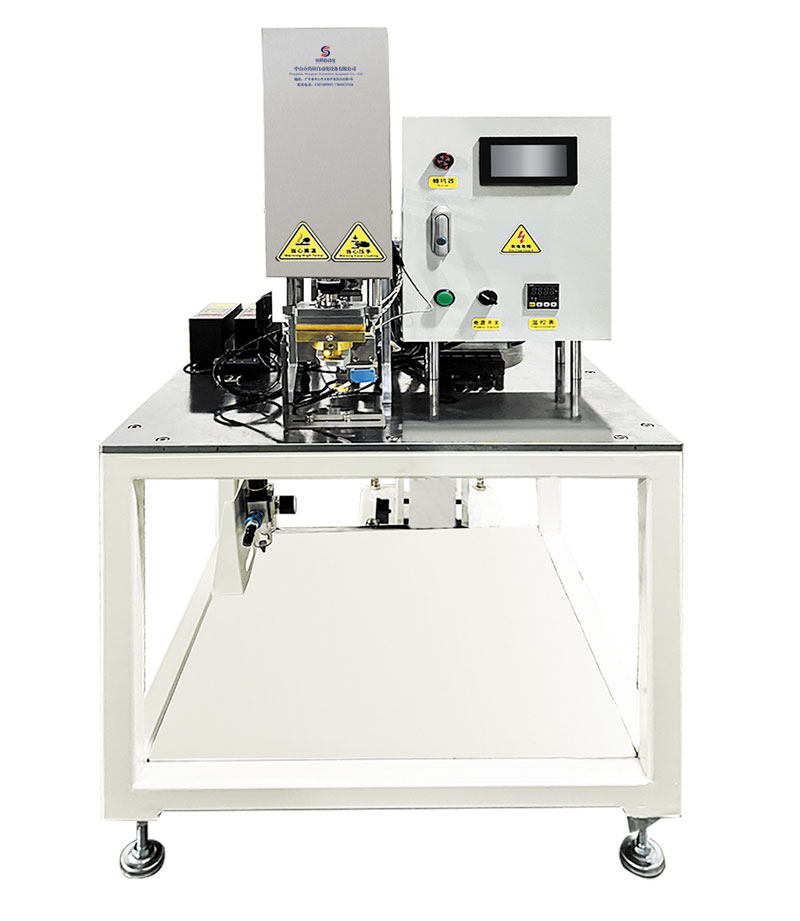

Product display
