Machine profile

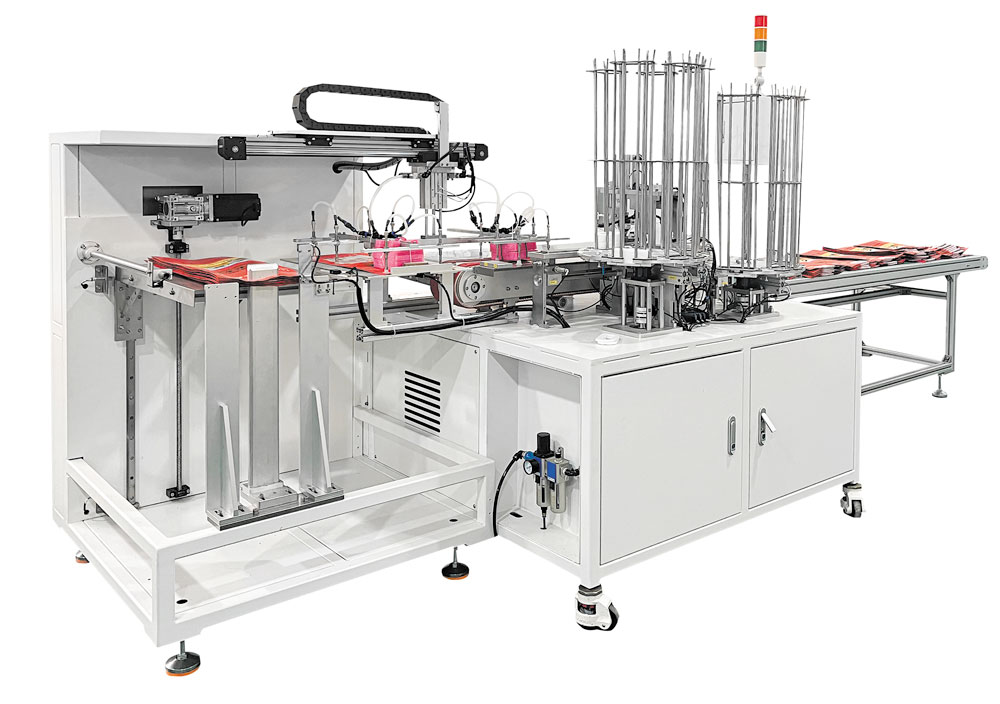

This machine is a device that automatically assemble handles for rice and flour bags.

The handle of this machine is added approximately once every 30 minutes, and can also be addedduring use. The bag storage can be used for about an hour.

Main property indication

Power： AC 220V，50HZ， Capacity：5.5KW；

Compressed air： 0.5-0.6Mpa，100NL/min；

Size：L×W×H：4000×1400×1600（mm）

Host size：1600×1400×1600（mm） (Including a 2.4m finished product conveyor line)；

Weight： ≈800Kg；

Quick-wear part： Vacuum suction cup；

Pouch size：L*W=（400～600）×（250-350）mm ；

Handle size：Customizable Specify a type that matches the rice bag；

Efficiency：≈1800 Per/hour。

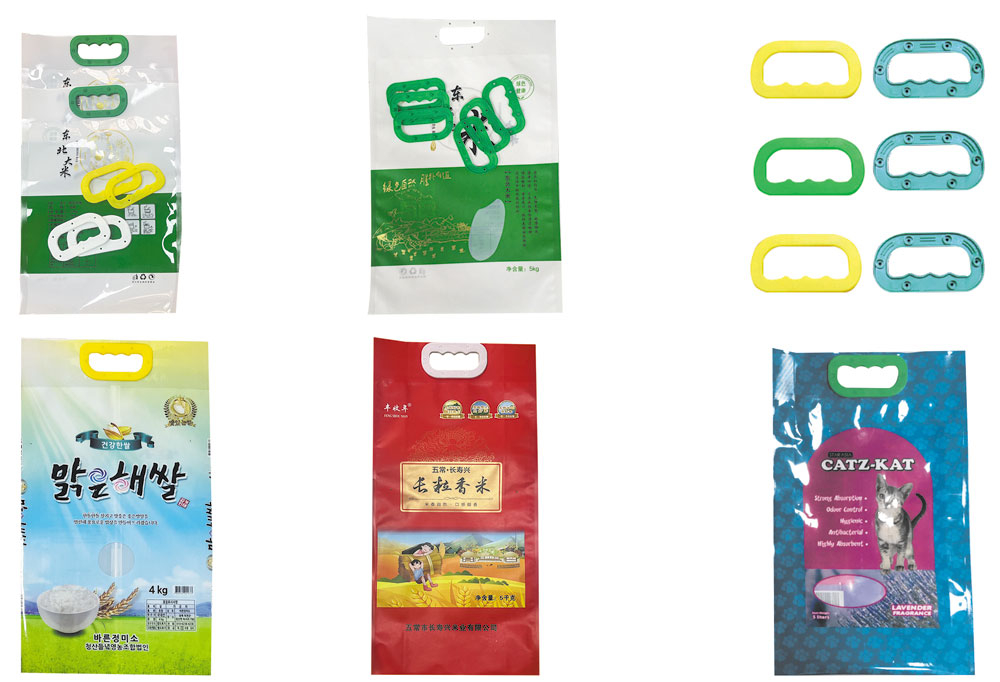

Product display
